NOTICE
All prices on AliExpress are for reference only, the shipping cost is not includeddue
to the particularity of the product.
The payment via AliExpress is not accepted.
Payment acceptable: T/T or Alibaba Trade Assurance.
The product will be delivered by sea ( LCL / FCL ) according to different modelsand
quantity with different shipping cost, please contact with us so that we canquote the
final price.

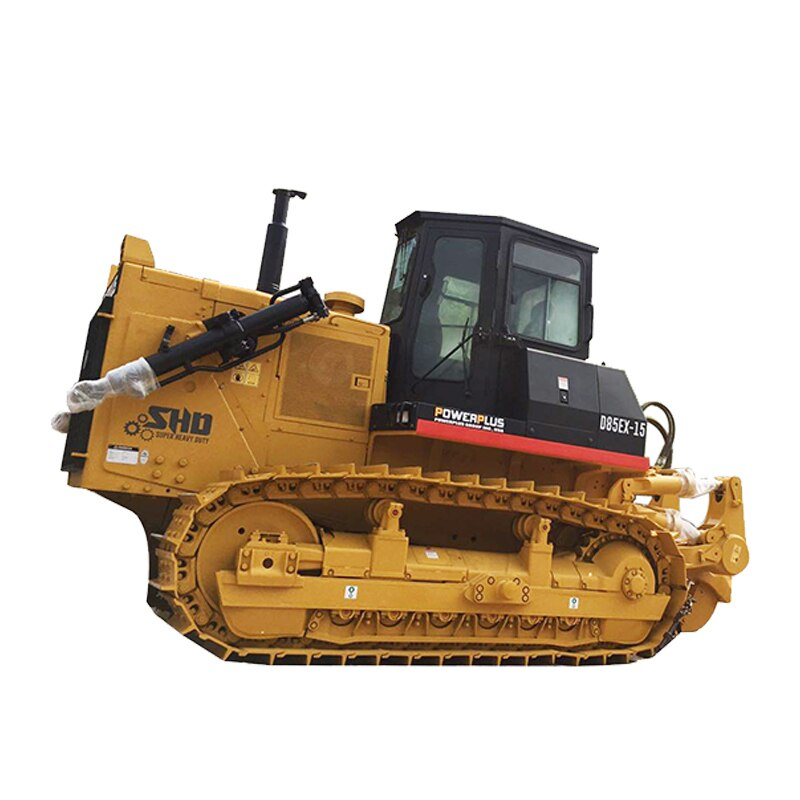

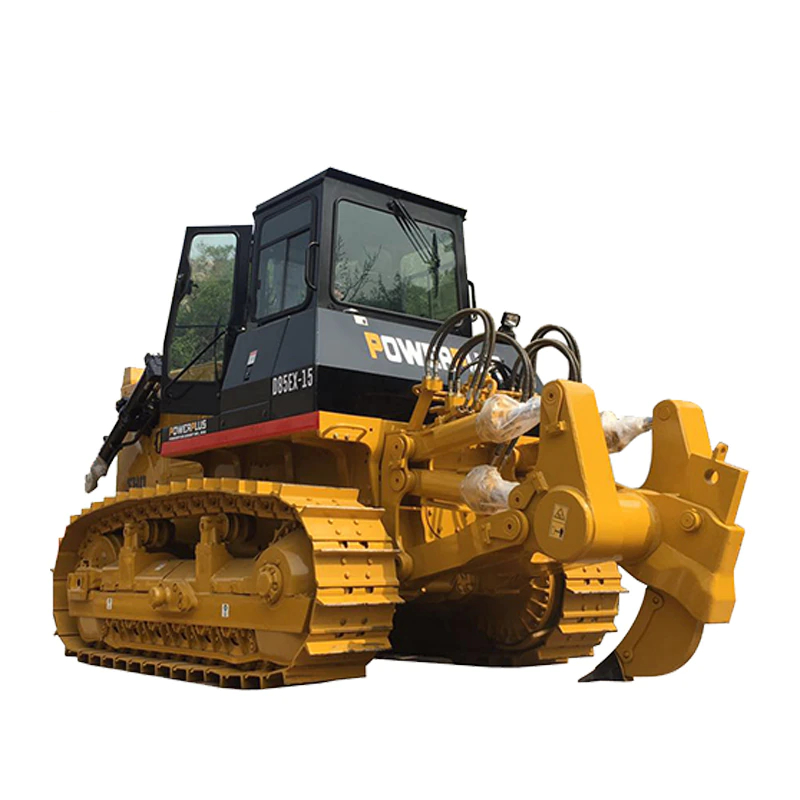

220HP Crawler Bulldozer with Single/Three Teeth Rear Ripper Price
|
ENGINE |
|||
|
Model |
CUMMINS NT855-C280S10 |
Fuel consumption |
214g/kW.h (160g/HP.h) |
|
Flywheel horsepower |
180 kW(245 HP)@ 1800 rpm |
Governor |
Centrifugal, all-speed governor |
|
Max torque |
1030N.m @ 1250 rpm |
Cooling system |
Forced circulation driven by centrifugal pump, exhaust fan |
|
TRAVEL SPEED |
|||
|
Gear |
1st |
2nd |
3rd |
|
Forward |
0-3.8km/h |
0-6.8km/h |
0-11.6km/h |
|
Reverse |
0-4.6km/h |
0-8.1km/h |
0-13.5km/h |
|
UNDERCARRIAGE SYSTEM |
|||
|
Suspension |
Oscillation-type with equalizer bar and forward mounted pivot shafts |
Width |
560 mm |
|
No. of carrier rollers |
2 (each side) |
Grouser heigh |
72 mm |
|
No. of track rollers |
6 (each side) |
Track gauge |
2000 mm |
|
No. of idler |
1 (each side) |
Ground clearance |
405 mm |
|
No. of track shoes |
38 (each side) |
Ground pressure |
0.077 MPa |
|
Track shoe type |
Single grouser |
Gradeability |
30° |
|
Pitch |
216 mm |
Min. turning radius |
3.3 m |
|
WEIGHT |
|||
|
Operating weight |
24500kg |
With ripper |
27250kg |
|
WORKING EQUIPMENT AND ATTACHMENT |
|||
|
Straight-tilt dozer |
Hydraulically-actuated with servo valve |
Max. lift above ground |
1210mm |
|
Blade support |
Brace type with tilt cylinder on the right side |
Max. drop below ground |
540 mm |
|
Width |
3725 mm |
Max. tilt adjustment |
735 mm |
|
Height |
1315mm |
Blade weight |
3680 kg |
|
Blade capacity |
7.5 m3 |
— |
— |
|
OVERALL DIMENSION |
|||
|
Overall length with ripper |
6805mm |
Overall length with blade |
5460mm |
|
Length of track on ground |
2730mm |
Overall height |
3395mm |
|
Overall width (without trunnious ) |
2620mm |
Track gauge |
2000mm |
|
Blade width |
3725mm |
Blade height |
1210mm |
|
The parameters are subject to change without notice |
|||
