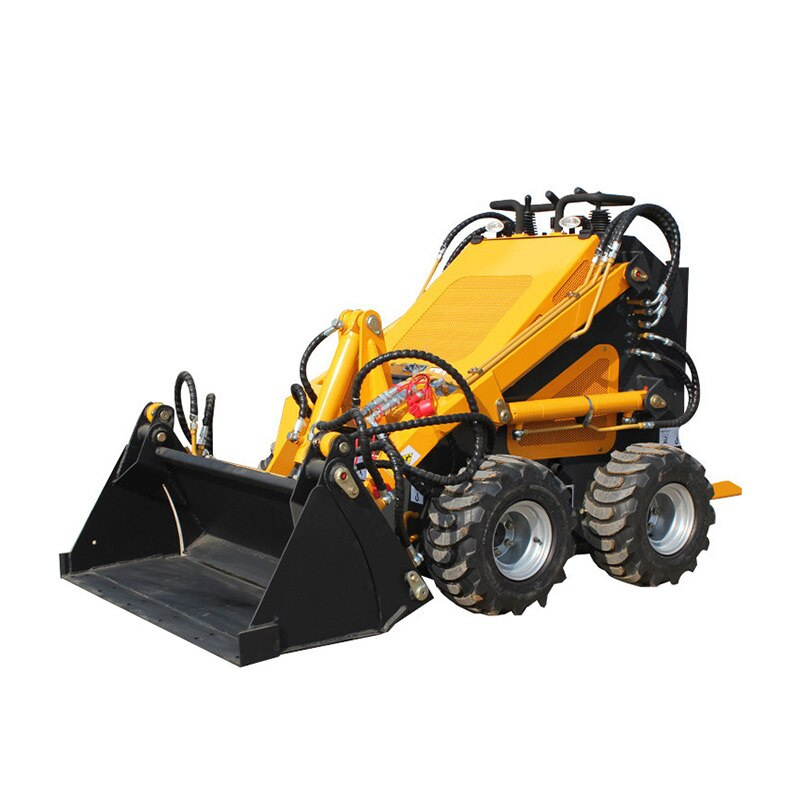

Product Description

High performance

Compact structure design, mini skid steer loader can enter into small spaces for working, even indoor room

Easy control

Only two control handles control running, lifting and dumping. Piston hydraulic motors provide mini skid steers with a larger torque and make smooth running. Four wheel drive enables mini skid steers to walk in a variety of terrain.

Easier maintenance

Open style design, upper cover and back guard plate can be easily opened and dismounted, you also can easily discharge the wasted engine oil outside the body, all of these can make you replace the spare parts easily, as air filter, engine oil, oil filter, spark plug and so on.

Compare with similar products, mini skid steer loader has a higher lifting height.Global famous brand engine.

Hydraulic joystick control optional, balance weight platform optional, diesel engine and electric configuration optional

Main Performance Parameter

Max working height H1

2143mm

84.37inch

Max dump height H2

1488mm

58.58inch

Total Height H

1233mm

48.54inch

Max pin height

1884mm

74.17inch

The length of the foot plate

678 mm

26.7inch ( foot plate level )

Total length with bucket L

2206mm

86.9inch

Highest point dump distance L1

348mm

13.7inch

Length without bucket L2

1752mm

69inch

Bucket width B

980mm

38.6inch

Total width B1

1160mm

45.67nch

Wheel base

940mm

37inch

Ground clearance

118mm

4.65inch

Turning radius R

1307 mm

51.5inch

Bucket dumping angle α

30°

Rollback of bucket on ground β

25°

Departure angle

11° ( foot plate level )

Engine rated power

15.4kw ( 21hp )

Engine rated speed

3300rpm

Noise

95Db

Hydraulic pressure

17Mpa

Operating Load

200 Kg

441lb

Bucket Capacity

0.15 m3

5.33ft3

Max Lifting Force

375 Kg

827lb

Travel Speed

0-5.5Km/h

0-3.4mile/h

Weight equipped chevron engineering tyre standard

890kg

1958lb

The parameters are subject to change without notice
