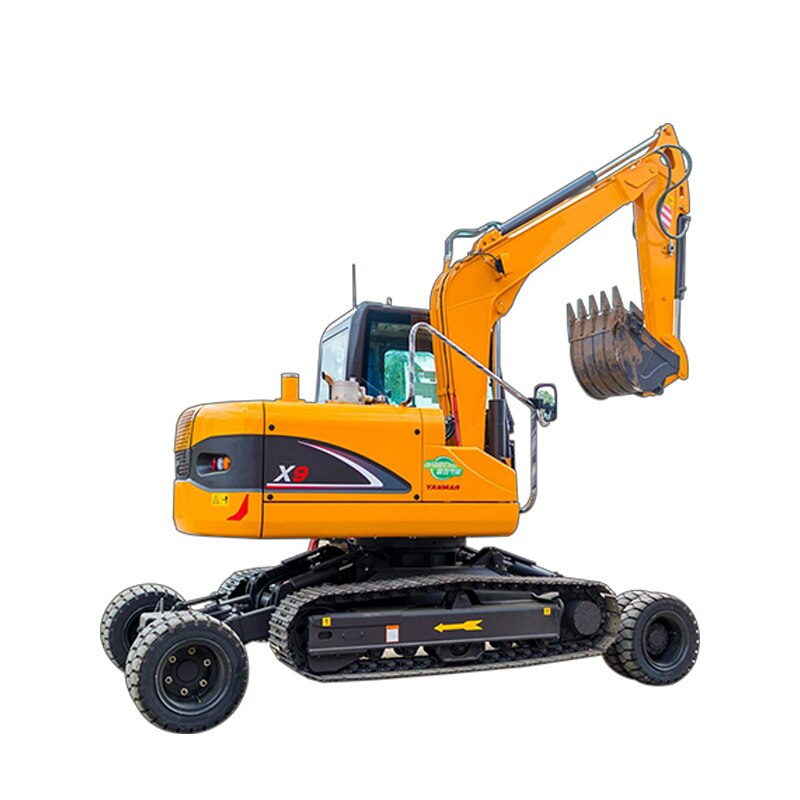

Both Crawler Wheel Excavator X9 Walking Digger

Main Parameter

1.Imported YANMAR engine, powerful and reliable performance. Meet to the china Ⅲ emission standards, saving fuel 30% than last generation.

2.Import Germany Rexroth system, stable performance. Equipped with reinforced walking device and famous tires.

3.X9 Wheel-crawler excavator is with national invention patent which is totally researched and developed by our company, the first design in the world. Convenient moving, fast travelling speed, quick transferring from wheels to track walking. The wheel travel device can be quickly disassembled when required.

Operating weight

8770kg

Bucket capacity

0.3m3

Overall dimension

6570x2120x2980mm

Bucket digging force

56kN

Engine Parameters

Model

YANMAR 4TNV94L-BNBKC

Engine power

33.7kw / 2100rpm

Speed

Wheel travelling speed

25km/h

Track travelling speed

2.3km/h

Swing speed

9rpm

Max grade ability

30°

Hydraulic System

Hydraulic system

Germany REXROTH

Pump

Variable capacity pump

Pressure

25Mpa

Displacement

132L/min

Capacity of hydraulic tank

175L

Capacity of fuel tank

150L

Working Range

Counter weight turning radius

1836mm

Engine hood height

2104mm

Counter weight ground clearance

1120mm

Upper structure width

2000mm

Cabin height (wheels up)

2982mm

Tire width

2120mm

Distance of swing center to rear wheel (wheels down)

1767mm

Rear wheel ground clearance (wheel up)

300mm

Track wheel track

2050mm

Track width

400mm

Working Range

Working device

Boom 3.6m + Arm 2m

Max digging radius

6880mm

Max digging radius (on ground)

6735mm

Max digging depth

3772mm

Max digging height

7130mm

Max dumping height

5220mm

Min turning radius

2617mm

Max vertical digging depth

3425mm

Bucket digging force

56kN

Bucket arm digging force

36kN

The parameters are subject to change without notice
